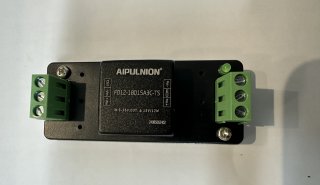

The FD12-XXDXXA3(C) and FD30-XXDXXB3C3 DC/DC converters are high-performance power modules designed for demanding industrial, automation, energy, and telecommunication applications.
They offer stability, high efficiency, wide input range, and multiple built-in protections, ensuring reliable long-term operation.
• Wide 4:1 input voltage range
• 12W output power
• Efficiency up to 88%
• Ultra-low standby power: 0.020W
• Ultra-fast output start-up
• Continuous short-circuit protection (auto-recovery)
• Input undervoltage • Output overvoltage • Overcurrent • Short-circuit protection
• Switching frequency: 250 kHz
• 1500VDC isolation
• Operating temperature: –40°C to +85°C
• Excellent EMI performance
• International standard pin layout
• Wide 4:1 input voltage range
• 30W output power
• Efficiency up to 90%
• Ultra-low standby power: 0.10W
• High-isolation dual regulated output
• Full protection suite: undervoltage • overvoltage • overcurrent • short-circuit
• Switching frequency: 350 kHz
• 3000VDC isolation
• Operating temperature: –40°C to +85°C
• Optimized EMI behavior
• Standard 2×1 inch DIP package
