Reliability – Efficiency – Industrial Performance

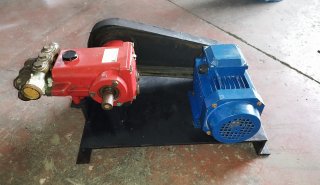

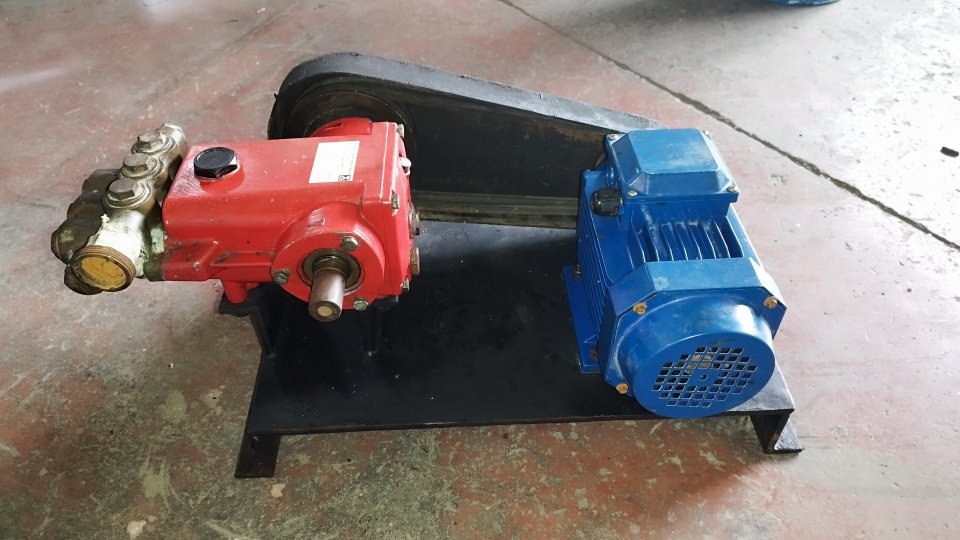

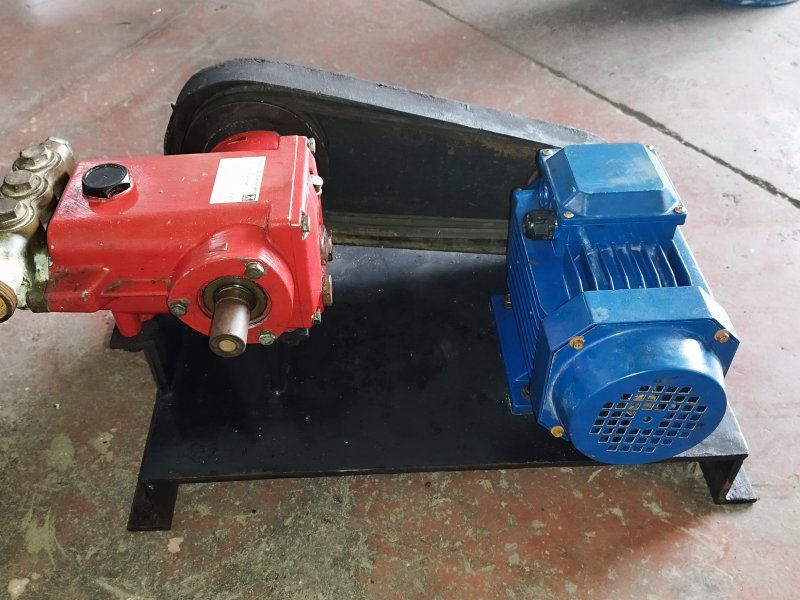

The LGLEM oil pump features a three-phase electric motor type Y2A-90L-4, designed for continuous industrial operation with high performance and durability.
Built according to CE standards, with IP55 protection, suitable for demanding environments such as industrial washers, hydraulic units, and presses.
■ Brand: LGLEM
■ Model: 3-MOT TYPE Y2A-90L-4
■ Insulation class: F
■ Protection: IP55
■ Connection: Y (Star)
■ Frequency: 50 / 60 Hz
■ Voltage:
• 380 / 400 V (50 Hz)
• 440 / 460 V (60 Hz)
■ Power:
• 1.5 kW (50 Hz)
• 1.8 kW (60 Hz)
■ Current:
• 3.72A / 3.53A (50 Hz)
• 3.93A / 3.73A (60 Hz)
■ Speed:
• 1390 rpm (50 Hz)
• 1670 rpm (60 Hz)
■ Power factor (Cosφ): 0.78
■ Bearing No: 6205Z / 6205Z1
Ideal for oil or water pumps in industrial laundry systems
Heavy-duty build for continuous operation
Energy-efficient and reliable
Inverter & PLC compatible
IP55 protection for demanding environments
